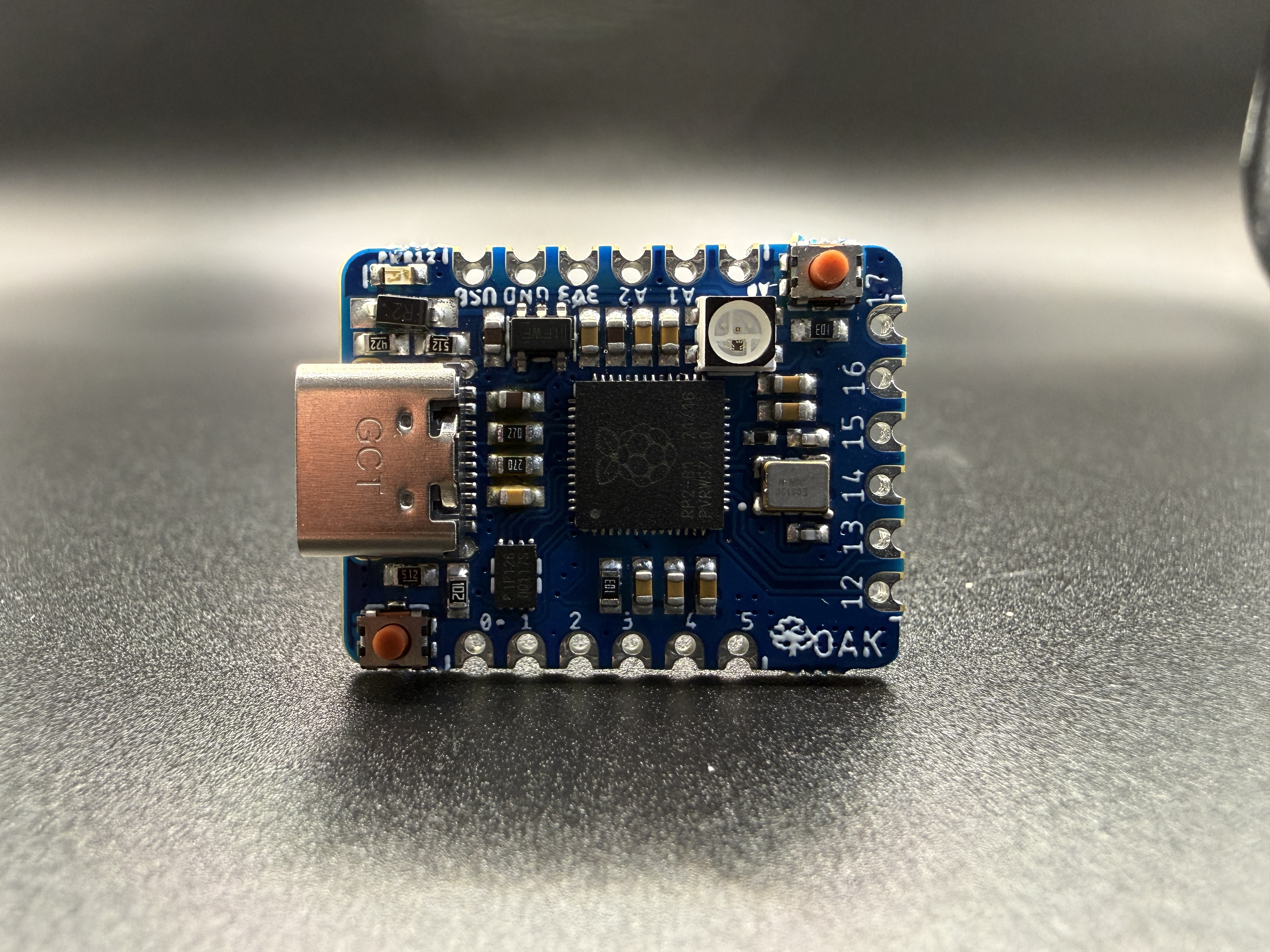

A Castelated RP2040 Board to Cast Away all your project fears!
Cast your project fears away with the Cast-Away RP2040, a small and easy to use RP2040 dev board designed to take your project to the beach. This board uses the popular Raspberry Pi RP2040, a dual core ARM Cortex M0 microcontroller.
CAST-AWAY can be used on a breadboard or soldered directly to another PCB to bring small but powerful RP2040 capabilities to your project.
CAST-AWAY RP2040 comes with CircuitPython support right out the gate.
Features
USB-C Connector NEOPIXEL Compatible SK6812mini Addressable RGB LED 15 Flexible GPIO (3 Analog, All PWM'able) Castellated single sided design for flush mounting Buttons on the corners for easy access 3.3V broken out with 500mA max output Raw USB Power (5.5V) and USB PID configured for up to 3A with USB Type-C PID Supply
